Performance Metrics of Network Monitoring

You can view the device performance snapshot under monitor details page. Inside the home page, click on the respective network device to access the monitor details page. Displays the system's details such as the IP address, operating system, time stamp of previous and next polls and a description on the system hardware details. System description is seen on the SNMP-enabled devices.

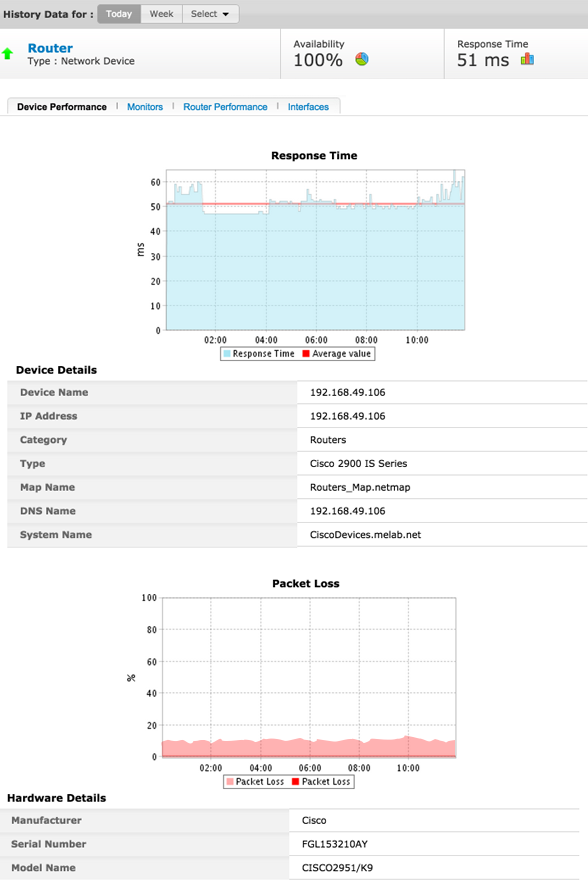

Device Performance

Response Time

Shows the current response time of the device. Cliking on the chart displays the response time history.

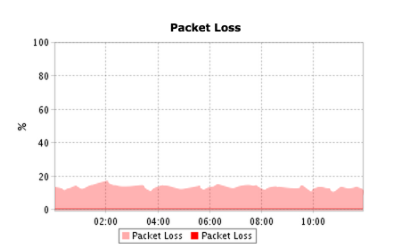

Packet Loss

Shows the packet loss percentage for the device on that day.

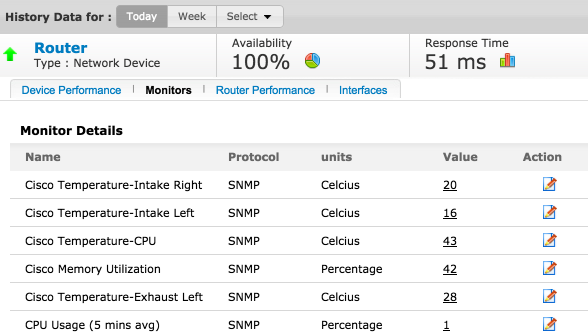

Monitors

This tab lists different monitors for the device. Select each monitor section to view the monitors. Displays the hardware specific metrics like temperature stats, memory and CPU utilization.

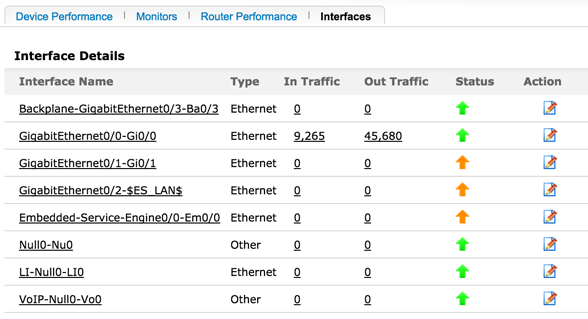

Interfaces

Displays the list of interfaces in the selected device with their status and other details. Click the interface name link to view its availability and graphs on traffic and bandwidth utilization.

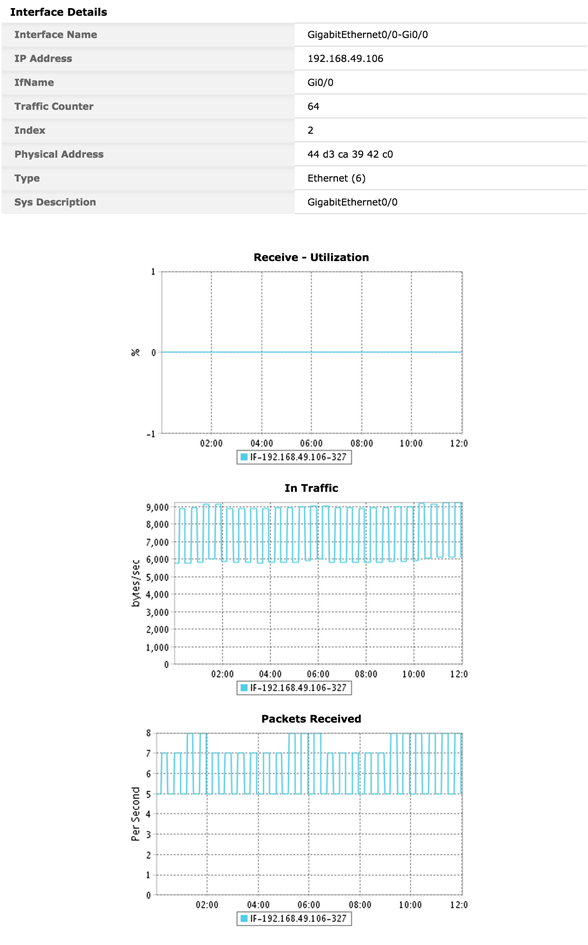

Clicking on an interface will reveal the Interface Details like the In Traffic, Out Traffic, Packets Recieved, Packets Sent and Bandwidth Details.

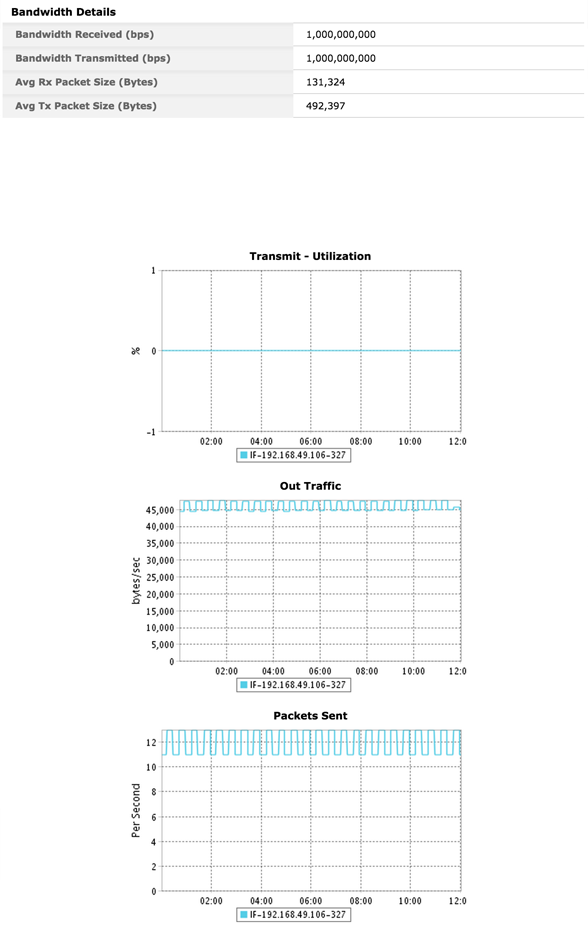

Bandwidth Details are captured with other metrics.
