Get instant and informative data critical to the functioning of the Microsoft BizTalk server, facilitating effective exchange of documents between business partners. The BizTalk monitor uses the Site24x7 Windows agent for monitoring. Install the Windows agent and get the BizTalk servers auto-discovered.
Once the BizTalk server monitor is successfully added to your Site24x7 account,

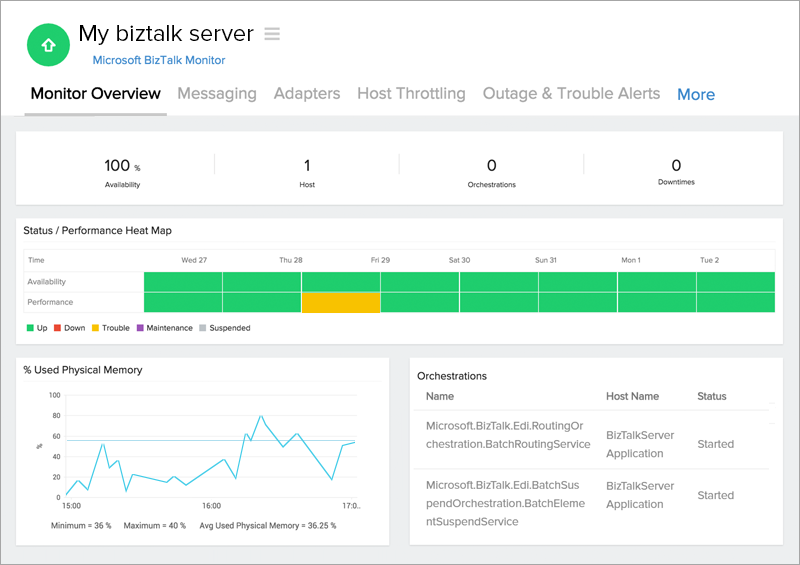

Monitor Overview: An overall view of the BizTalk server, in addition to the states of orchestration, send, and receive ports.

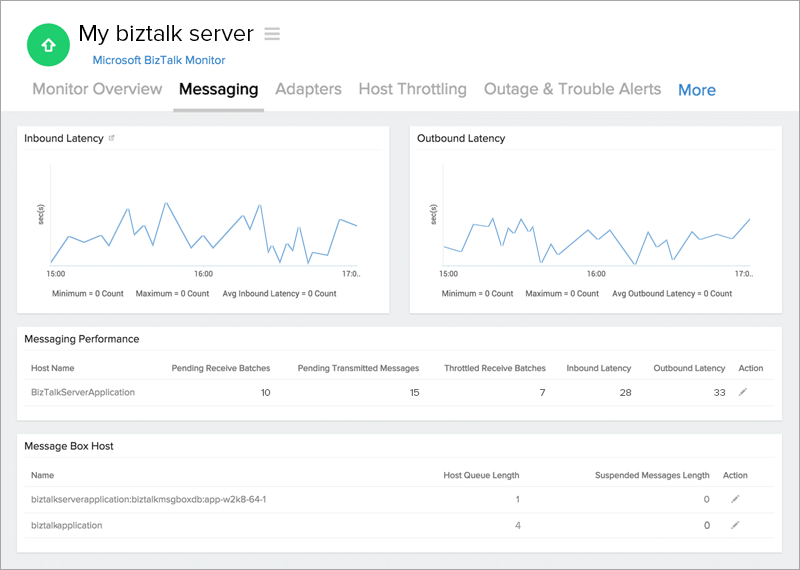

Messaging: Provides details on the messaging performance.

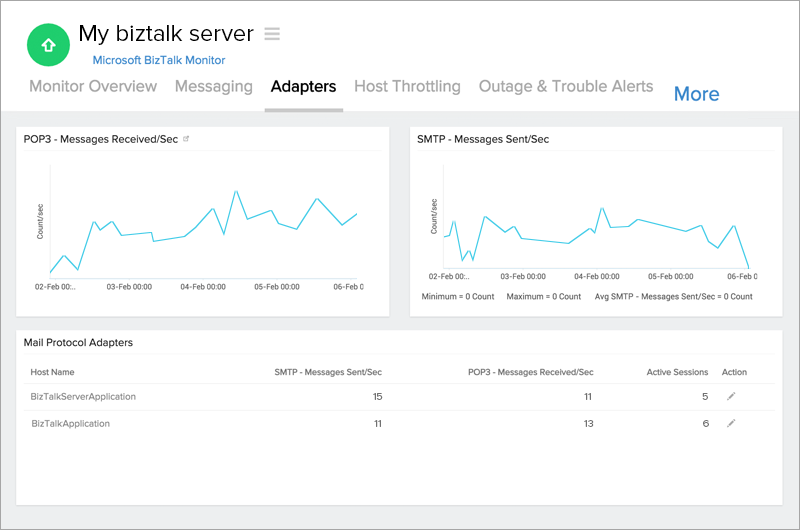

Adapters: Shows information on the various adapters associated with the BizTalk server.
Host Throttling: Parameters related to the throttling mechanism are listed.
Monitor Overview
Orchestration Engine:
Parameters
Description
Name
Name of the orchestration
Host Name
Name of the host
Status
Tell us the state of orchestration
The physical memory graph gives us the percentage of physical memory used on the machine. Multiple BizTalk servers can be plotted against the physical memory of a machine.
Parameters
Description
Send Ports:
Name
Name of the send port
Is TwoWay
Gives us a value specifiying whether the send port is set us as a request-response port
Is Dynamic
Tells us if the send port is dynamic or static
Receive Ports:
Name
Name of the receive port
Is TwoWay
Gives us a value specifying whether the receive port is set up as a request-response port
Primary Receive Location
The primary location for receiving the message content
Receive Locations:
Name
Name of the receive location
Inbound Transport URL
The main point where the receive location is mapped for receiving messages
Host Name
Name of the host used by the receive location
Adapter Name
Name of the adapter used by the receive location
Receive Port Name
Name of the port used by the receive location
Enabled
Tells us the status of the host
Messaging
Parameters
Description
Messaging Performance:
Host Name
Name of the host
Pending Receive Batches
The number of pending batches that have not completed processing
Pending Transmitted Batches
The number of pending batches from the messaging engine to be sent to the adapters
Throttled Receive Batches
The number of pending batches that are blocked due to high service load by the messaging engine
Inbound Latency
The average latency recorded from when the messaging engine receives the message from the adapter to the time it is published in the message box
Outbound Latency
The average latency recorded from the time the messagin engine receives the message from the message box till it is sent by the adapter
Message Box Host:
Name
Name of the message box host
Host Queue Length
The total number of messages in the host queue
Suspended Messages Length
The total number of messages suspended for the host
Message Box General:
Name
Name of the message box
Total Instances
Total number of instances occured on the host
Tracking Data Size
Size of the tracking data table on the message box
Spool Size
Size of the spool present on a particular message box on a particular server
Adapters
Parameters
Description
Mail Protocol Adapters:
Host Name
Name of the host
SMTP Messages Sent/Sec
The number of messages sent by the SMTP adapter per second
POP3 Messages Received/Sec
The number of emails taken up by the POP3 adapter from the mail server per second
Active Sessions
The number of open POP3 connections manageable by the adapter at a time
Action
The threshold for a particular instance can be configured
File Adapter:
Host Name
Name of the host
File Messages Received/Sec
The number of messages received by the file adapter per second
File Messages Sent/Sec
The number of messages sent by the file adapter per second
Action
The threshold for a particular instance can be configured
FTP Adapter:
Host Name
Name of the host
FTP Messages Received/Sec
The number of messages received by the FTP adapter per second
FTP Messages Sent/Sec
The number of messages sent by the FTP adapter per second
HTTP Adapter:
Host Name
Name of the host
HTTP Messages Received/Sec
The number of messages received by the HTTP adapter per second
HTTP Messages Sent/Sec
The number of messages sent by the HTTP adapter per second
Action
The threshold for a particular instance can be configured
MSMQ Adapter:
Host Name
Name of the host
MSMQ Messages Received/Sec
The number of messages received by the MSMQ adapter per second
MSMQ Messages Sent/Sec
The number of messages sent by the MSMQ adapter per second
Action
The threshold for a particular instance can be configured
SQL Adapter:
Host Name
Name of the host
SQL Messages Received/Sec
The number of messages received by the SQL adapter per second
SQL Messages Sent/Sec
The number of messages sent by the SQL adapter per second
Action
The threshold for a particular instance can be configured
SOAP Adapter:
Host Name
Name of the host
SOAP Messages Received/Sec
The number of messages received by the SOAP adapter per second
SOAP Messages Sent/Sec
The number of messages sent by the SOAP adapter per second
Action
The threshold for a particular instance can be configured
Host Throttling
Parameters
Description
Host Name
Name of the host
Active Instance Count
The number of instances that are active in memory
Database Sessions Count
The number of concurrent message box database connections being used
Database Size
The capacity of the database in which the messages are published
Message Delivery Delay
The delay occured on each message delivery batch (in ms)
Total Messages Delivered
The number of messages delivered to the orchestration engine
Action
The threshold for a particular instance can be configured
